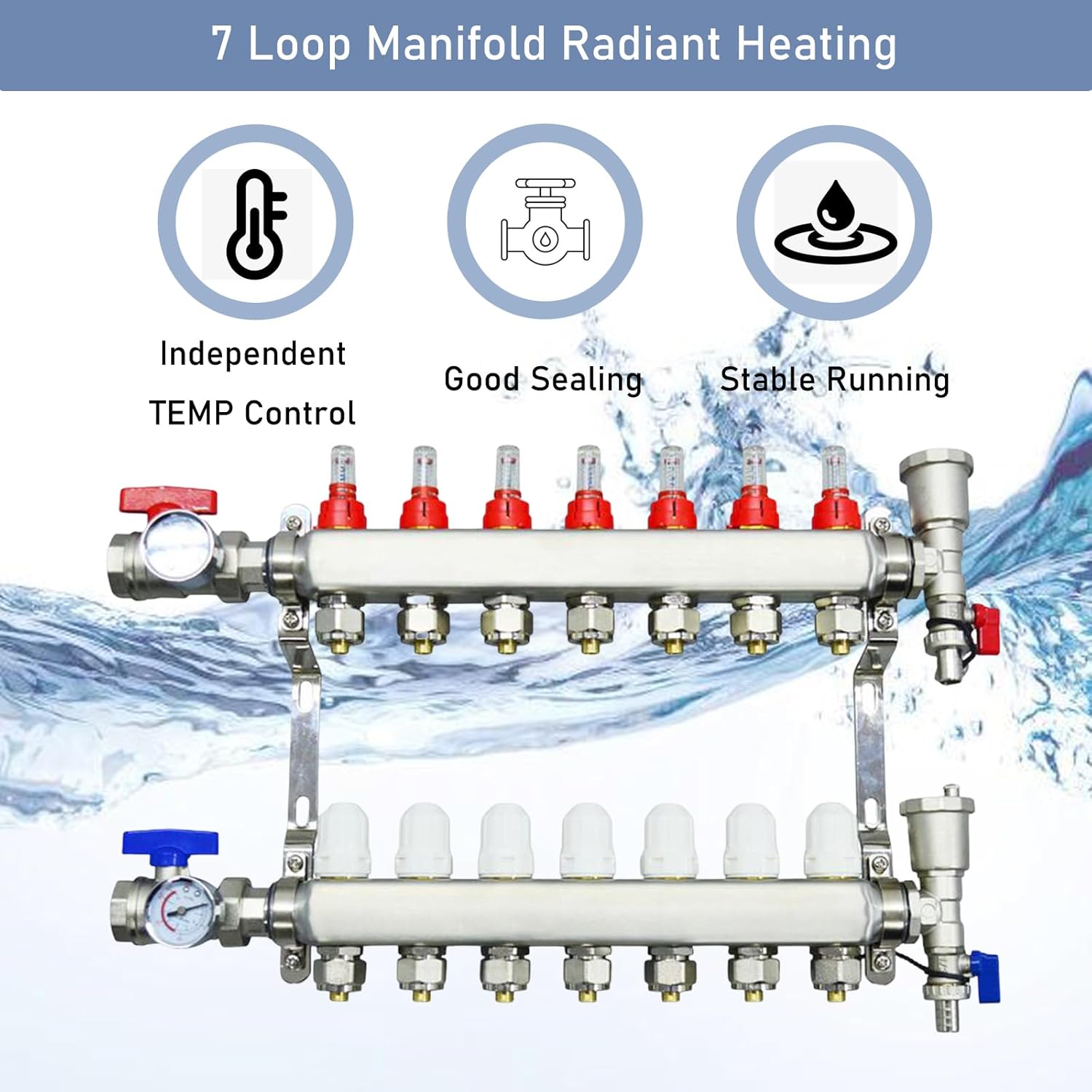

INTSUPERMAI 7 Loop Manifold Radiant Heating 7-Branch PEX Radiant Floor Heating Manifold Set Floor Manifold Collector Floor Heating Distributor, 7 Loop
Product details
| Management number | 220348299 | Release Date | 2026/05/03 | List Price | US$94.00 | Model Number | 220348299 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Main Parameters: Branch number: 7, Overall width: 20.7"(52.58cm), Main connection thread at both ends: G1" pipe thread, Branch pipe adapter: G1/2", Inner diameter of applicable floor heating pipe: 0.47"(12mm), Spacing of branch pipes: 1.97"(50mm), Stainless steel tube body thickness: 0.06"(1.6mm), Temperature control trip: 0.12"(3mm), Applicable temperature: 1℃-95℃

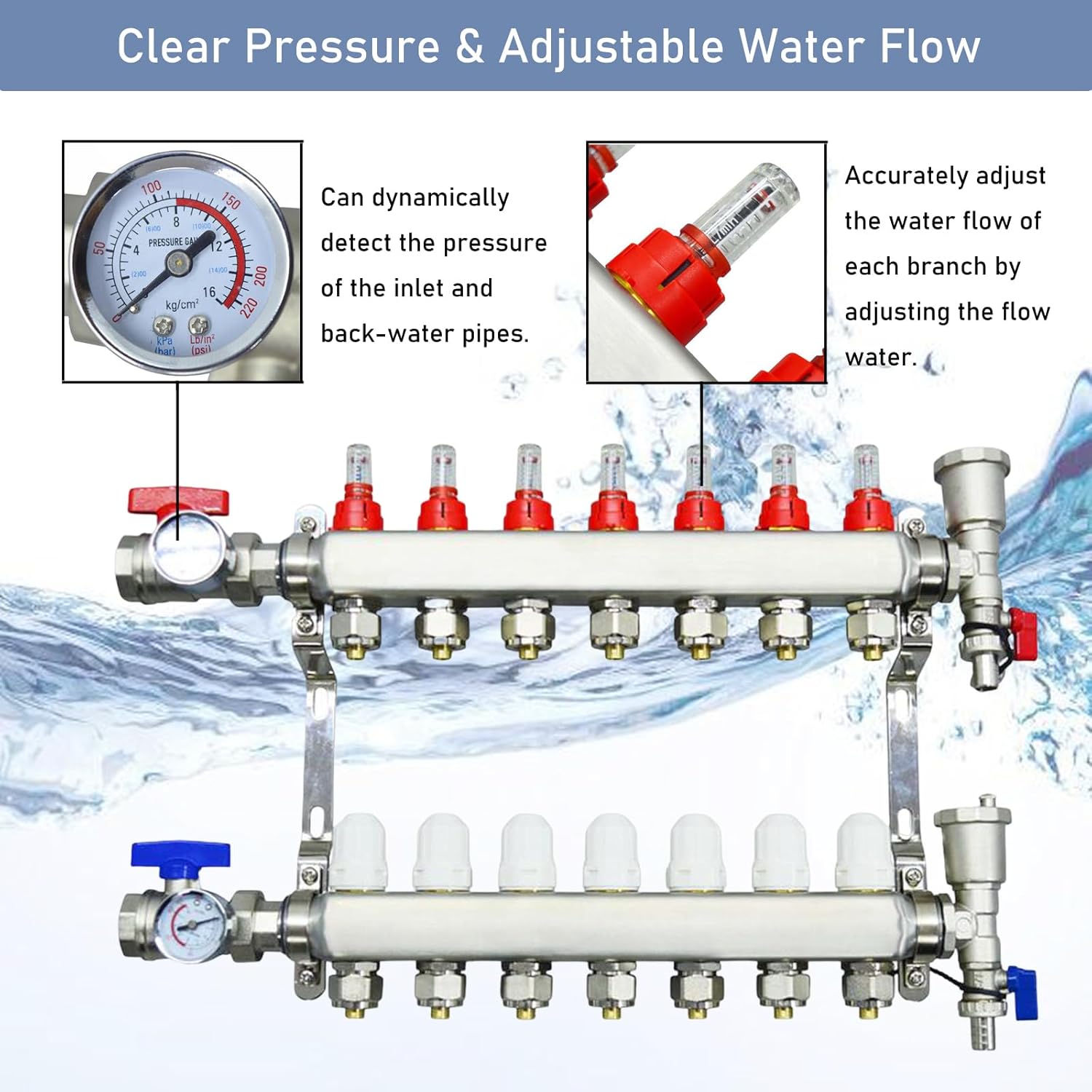

- Stable Running: No matter how the pressure difference of the system changes, the flow of each floor heating branch finally runs stably according to the heat load
- Independent TEMP Control: Backwater branches are equipped with independently adjusted temperature control valves, which can control the backwater of branches separately to adjust the temperature
- Good Sealing: Before leaving the factory, each set will be put in water for sealing test to ensure normal and safe use, convenient for disassembly and assembly during cleaning, also two-way double seal to prevent water leakage, there is no welding at the high compression port to avoid water leakage at the welding place for a long time
- Wide Application: In the floor heating system, the mainfold is mainly responsible for the opening and closing of the water flow in the floor heating loop, when the heated water flows into the mainfold through the main pipeline, the water is evenly distributed to the loop, and after heat exchange, the water is returned to the water outlet into the heating system, widely used for heating in homes, schools, hotels, swimming pools and other places
| UPC | 725683338263 |
|---|---|
| Size | 7 Loop |
| Color | Copper |
| Brand Name | INTSUPERMAI |
| Unit Count | 1.0 Count |
| Manufacturer | INTSUPERMAI |
| Material Type | Copper, Metal |
| Connector Type | Adapter |
| Exterior Finish | Brass |
| Number of Pieces | 1 |
| Manufacturer Part Number | S053266 |
