• FNIRSI DSO152 portable digital oscilloscope 200kHz (+P6100 probe and probe adapter)

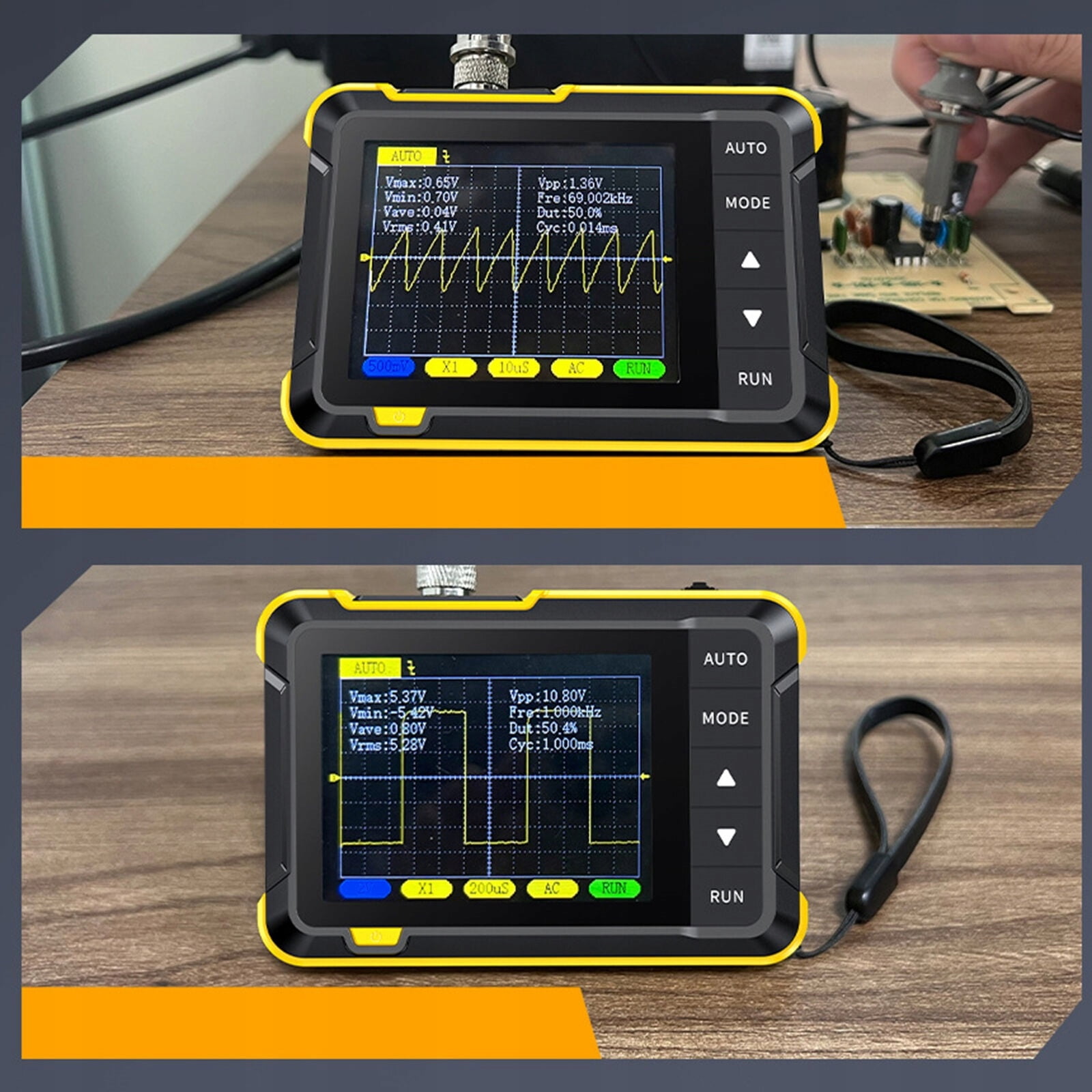

  The Fnirsi DSO152 is a compact digital oscilloscope that can accurately analyze analog and digital signals due to its real-time sampling rate of 2.5 MS/s and bandwidth of 200 kHz.

  It has three triggering modes: single, normal, and automatic, and can flexibly adjust the oscilloscope to adapt to different signals.

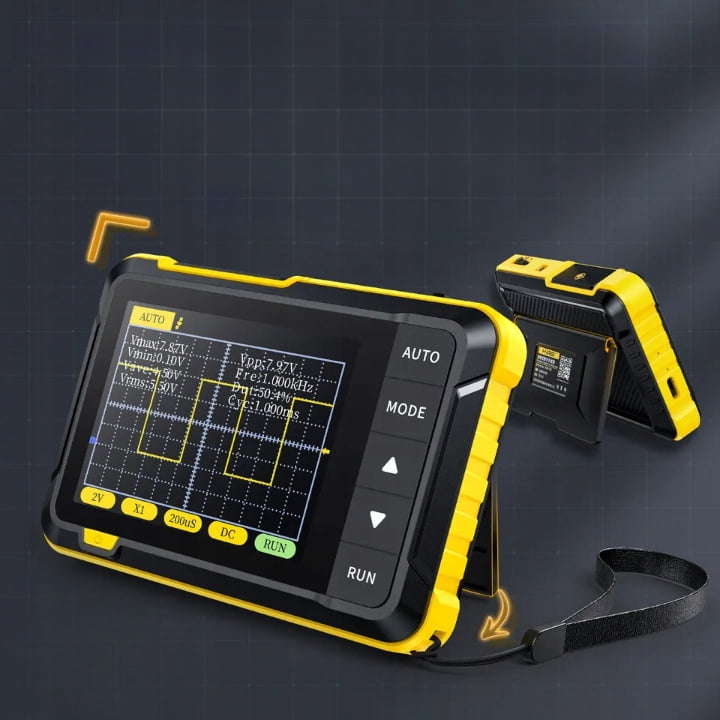

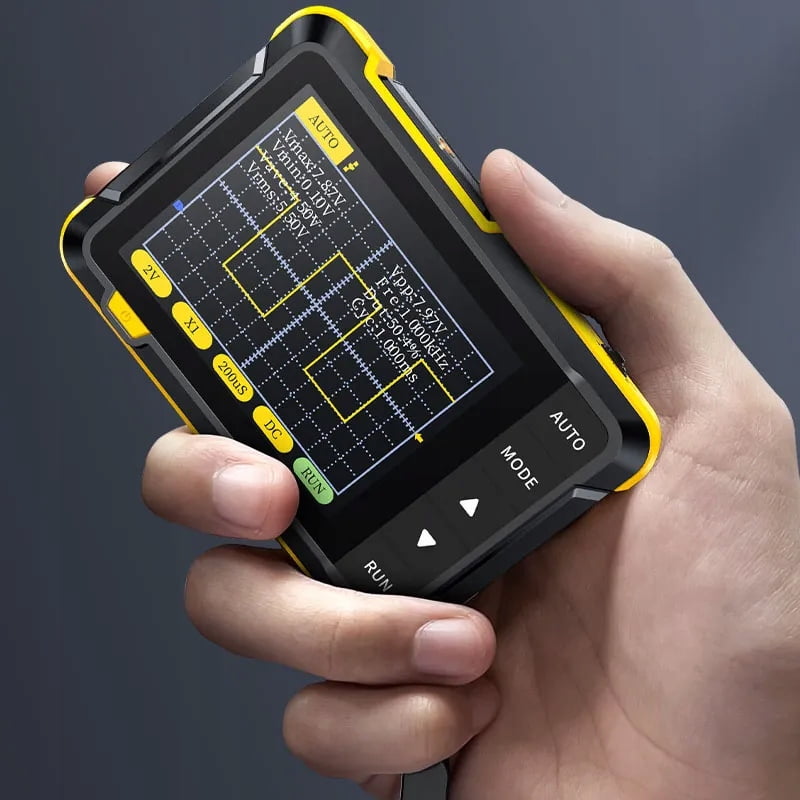

  This instrument panel is equipped with a 2.8-inch color LCD display screen and a built-in rechargeable lithium battery, providing users with efficient operation and easy portability, thus providing better functionality.

  The Fnirsi DSO152 is charged through a USB-C cable.

  This device is very suitable for those who enjoy using convenient devices and can be used in DIY, car repairs, or household appliances. It is not only suitable for buildings, but also for outdoor use, providing accurate measurements under various conditions.

• Product features:

  When using a 1:1 probe, the maximum input voltage is 80Vpp, and when using a 1:10 probe, the maximum input voltage is 800Vpp.

  2.1KHz SQW calibration and one click automatic adjustment

  3. Clear and brightly colored 2.8-inch LCD display screen

  4. Bandwidth up to 200kHz

  5. Sampling rate of 2.5MSa/s

  6. Perform measurements of analog and digital signals

  7. Triggered in single, normal, and automatic modes

  8. Triggering that can change the slope of rise and fall

  9. It has an MCX connector for connecting test signals

  10. It has additional functions such as mathematical measurement and one click automatic function

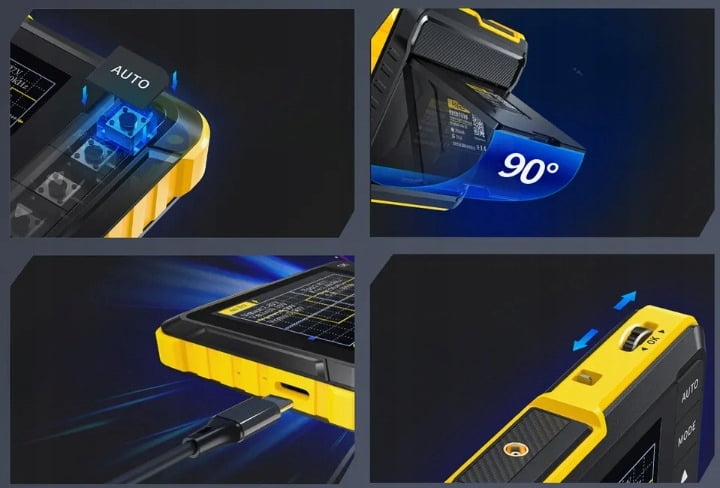

  11. It has a USB-C connector for charging and performing updates

• Model: DSO152

  Number of channels: 1

  Bandwidth: 200kHz

  -Input voltage of subwoofer: 80Vpp (probe 1:1), 800Vpp (probe 1:10)

  Measurement: Automatically measure 8 different parameters

  Automatic setting function: Yes

  Sampling frequency: 2.5MSa/s

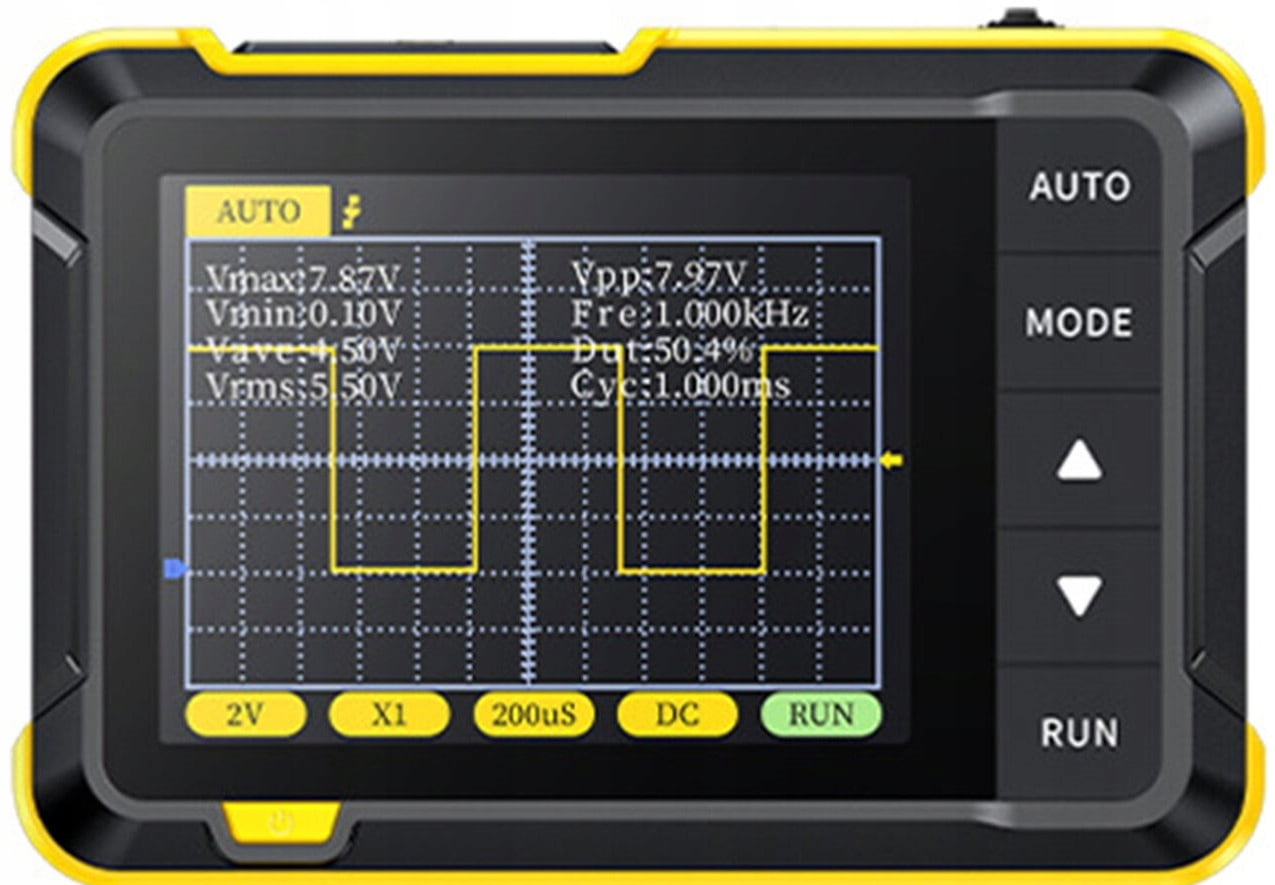

  Display screen: Color 2.8-inch 320x240 LCD

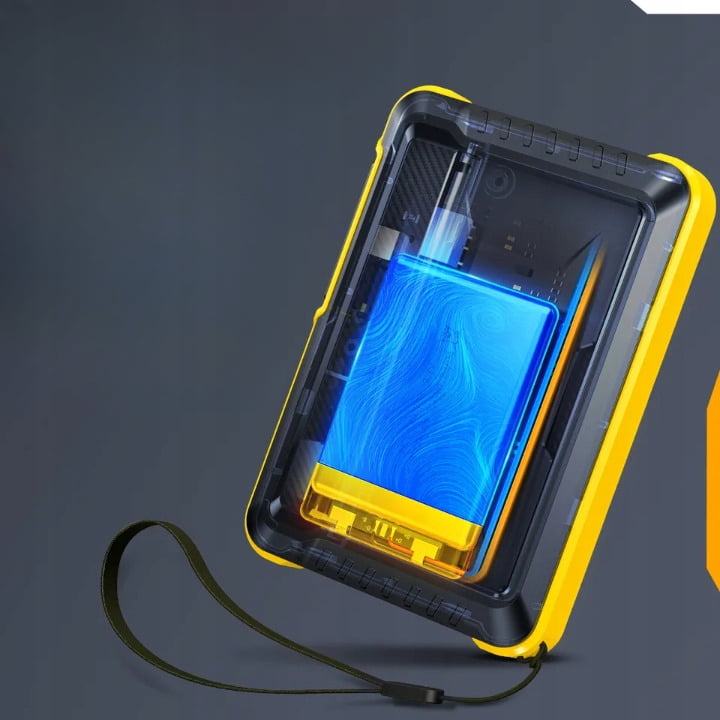

  Battery: Lithium ion 1000mAh

  Working time: approximately 4 hours (when fully charged)

  Trigger function: single, regular, automatic

  MCX connector for connecting wires: Yes

  Vertical sensitivity: 10mV/day -20V/day, step size 1-2-5

  Time benchmark adjustment: 10us/dz-50s/dz, step size 1-2-5

  SQW frequency calibration: 1kHz

  Coupling mode: AC/DC/GND

  Charging voltage: 5V/1A USB

  Input impedance:>1M Ω

  Size: 99x68x20 mm

  Weight: 100 grams

• This set includes:

  Oscilloscope DSO-152

  Measuring cables

  Probe P6100

  P6100 probe adapter

  USB cable
